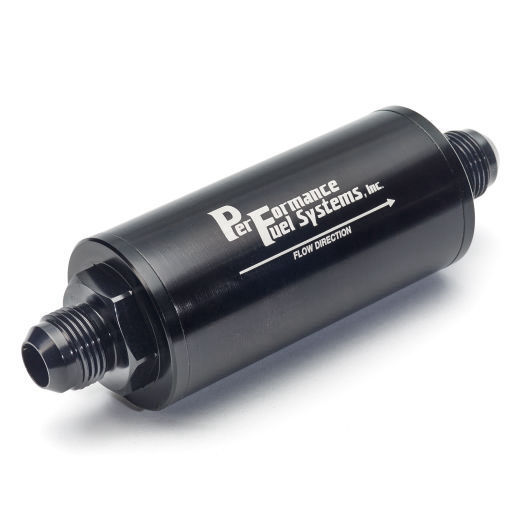

High Flow Fuel Filter 540gph 10micron 10AN
Ultra High Flow Aluminum Fuel Filter with Stainless Steel Cleanable Element
High flow rate 540 gph meets most high horsepower performance and race engine demands. Inline design with standard 10AN inlet and outlet fittings. 10 micron filter required for Electronic Fuel Injection (EFI) systems.
Specifications:
- Flow rate: 9 gpm / 540 gph
- Pressure rate: 250psi
- Housing: anodized aluminum
- Filter: 304 stainless steel
- Filtration area: 40 sq. in.
- Dimensions: 2 in. OD, 6.5 in. long
- Inlet/Outlet: 10 AN
- Weight: 12.5 ounces
Filter housings are machined, highly polished anodized aluminum. Cleanable 10 micron filter element pleated all stainless steel with soldered end caps to meet the requirements of evolving higher performance fuels. Made in The USA
Part Number: PF-9110-BK
High Flow Fuel Filter 540gph 10micron 12AN
Ultra High Flow Aluminum Fuel Filter with Stainless Steel Cleanable Element
- Flow rate: 9 gpm / 540 gph
- Pressure rate: 250psi
- Housing: anodized aluminum
- Filter: 304 stainless steel
- Filtration area: 40 sq. in.
- Dimensions: 2 in. OD, 6.5 in. long
- Inlet/Outlet: 12 AN
- Weight: 12.5 ounces
Filter housings are machined, highly polished anodized aluminum. Cleanable 10 micron filter element pleated all stainless steel with soldered end caps to meet the requirements of evolving higher performance fuels. Made in The USA
Part Number: PF-9112-BK

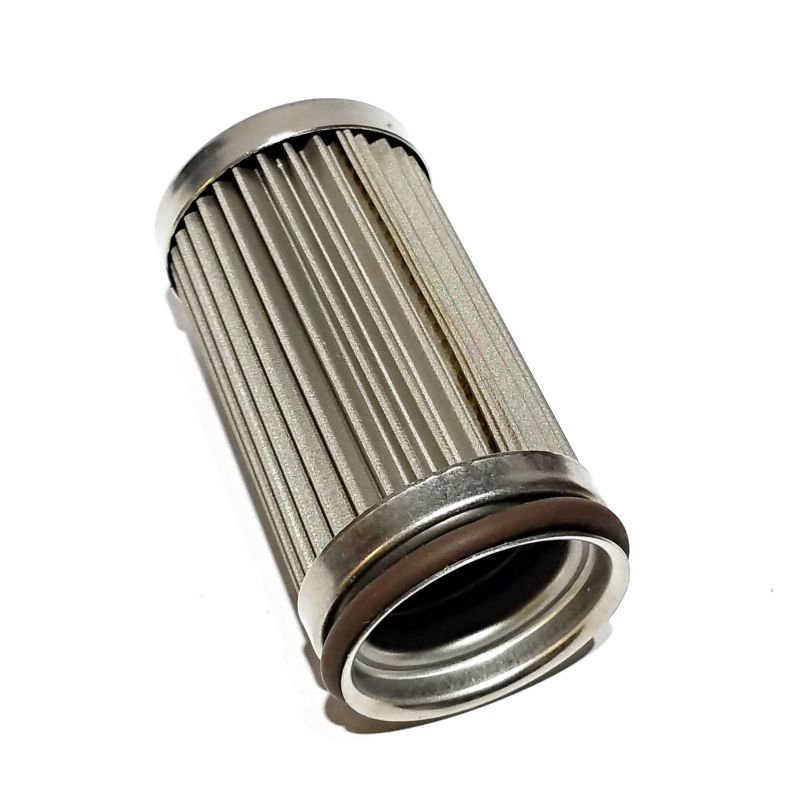

Replacement Filter Element 10micron for 540gph Filter
Replacement Filter Element for High Flow Filters PF-9110-BK and PF-9112-BK
- Stainless Steel 10micron Element
- 40 sq. in. Available Filter Area
- Cleanable
- Viton O-ring
- Stainless Steel End Caps
- Compatible With Most Race Fuels
Durable construction, stainless steel materials, non flow restrictive filter mesh designed to be compatible with most fuels and cleanable with soap and water.
Part Number: PF-9010

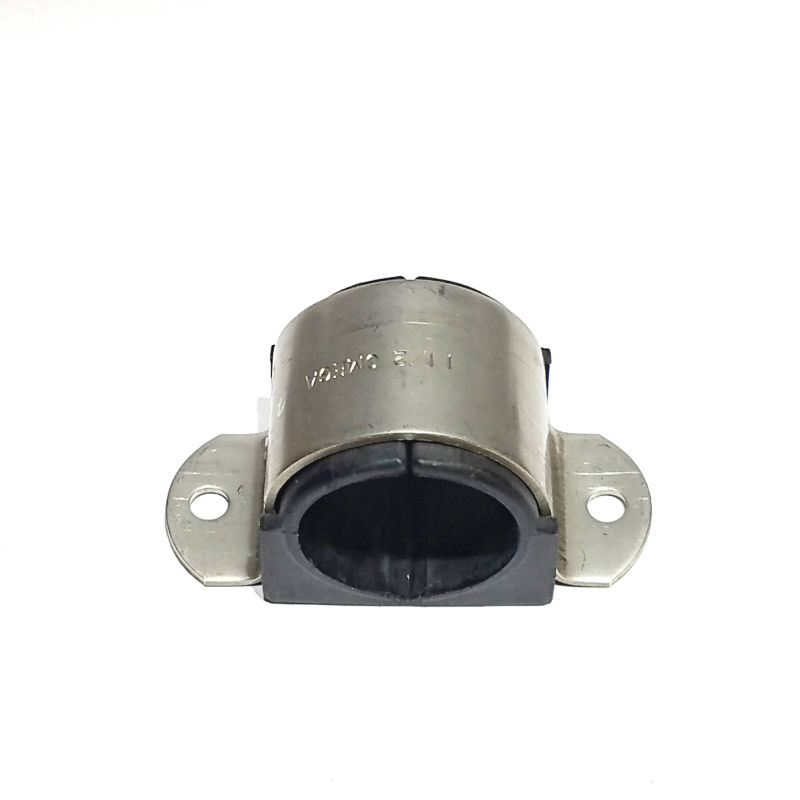

Fuel Filter Mounting Clamp for 540gph Filter
Mounting Clamp for High Flow Filters PF-9110-BK and PF-9112-BK
- Durable 2-Piece Construction
- Stainless Steel Outer
- Thermoplastic Elastomer Inner
Clamp assembly retains and protects the filter from vibration, shock, and noise. It also helps the filter to remain stable and prevent leakage. Built tough to withstand the effects of most oils, chemicals, and other industrial fluids, in temperatures from -50°F to 275°F.
Attachment screws not included.
Part Number: PF-9050

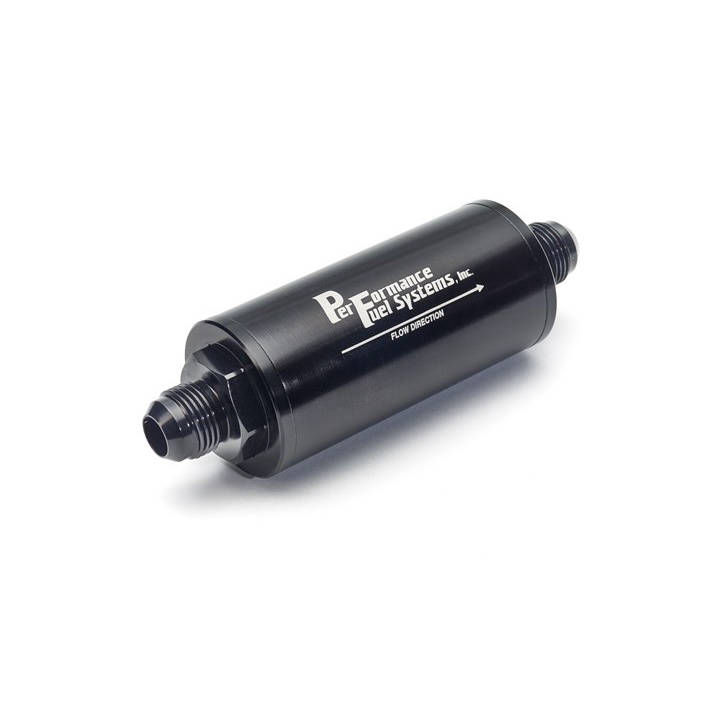

High Flow Fuel Filter 240gph 10micron 8AN
High Flow Aluminum Fuel Filter with Stainless Steel Cleanable Element
- Flow rate: 4 gpm / 240 gph
- Pressure rate: 250psi
- Housing: anodized aluminum
- Filter: 304 stainless steel
- Filtration area: 20 sq. in.
- Dimensions: 1.5 in. OD, 6.0 in. long
- Inlet/Outlet: 8 AN
- Weight: 5.2 ounces
Filter housings are machined, highly polished anodized aluminum. Cleanable 10 micron filter element pleated all stainless steel with soldered end caps to meet the requirements of evolving higher performance fuels. Made in The USA
Part Number: PF-9108-BK

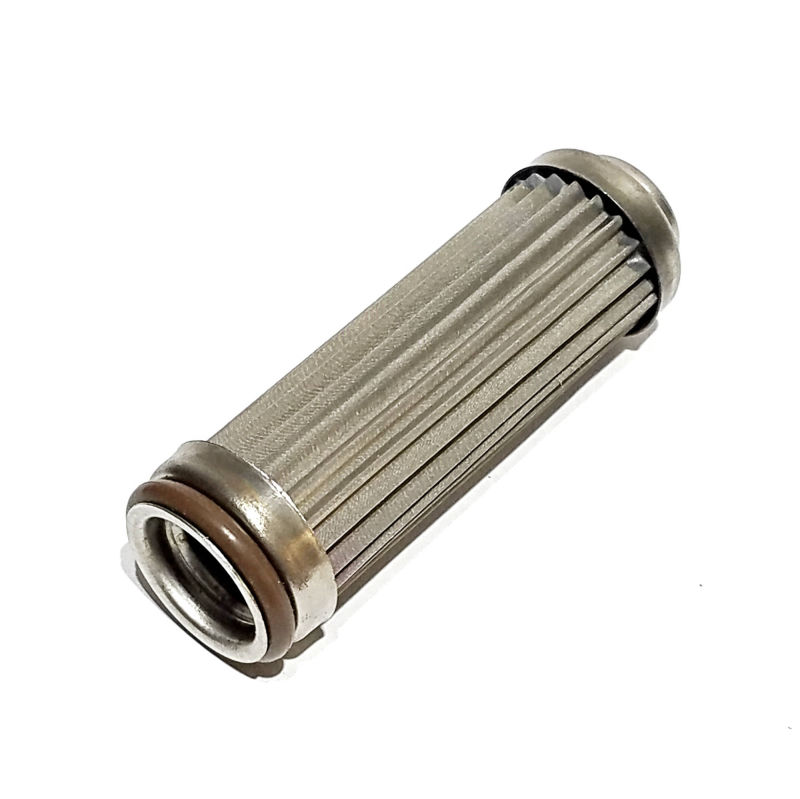

Replacement Filter Element 10micron for 240gph Filter
Replacement Filter Element for High Flow Filter PF-9108-BK
- Stainless Steel 10micron Element
- 20 sq. in. Available Filter Area
- Cleanable
- Viton O-ring
- Stainless Steel End Caps
- Compatible With Most Race Fuels
Durable construction, stainless steel materials, non flow restrictive filter mesh designed to be compatible with most fuels and cleanable with soap and water.
Part Number: PF-9008
Fuel Filter Mounting Clamp for 240gph Filter
Mounting Clamp for High Flow Filter PF-9108-BK
- Durable 2-Piece Construction
- Stainless Steel Outer
- Thermoplastic Elastomer Inner
Clamp assembly retains and protects the filter from vibration, shock, and noise. It also helps the filter to remain stable and prevent leakage. Built tough to withstand the effects of most oils, chemicals, and other industrial fluids, in temperatures from -50°F to 275°F.
Attachment screws not included.
